PICTURE IS FOR ILLUSTRATION ONLY
This item is priced each

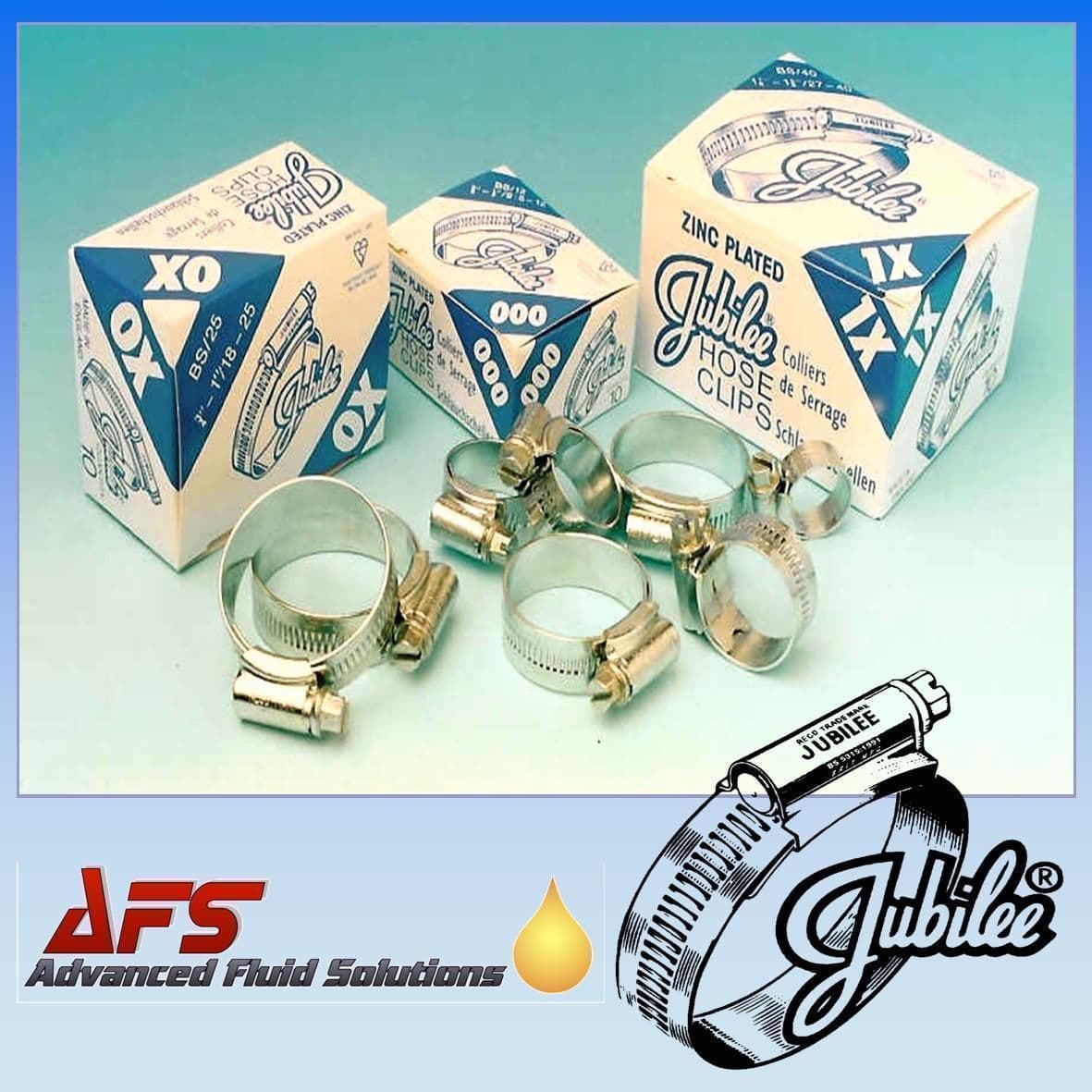

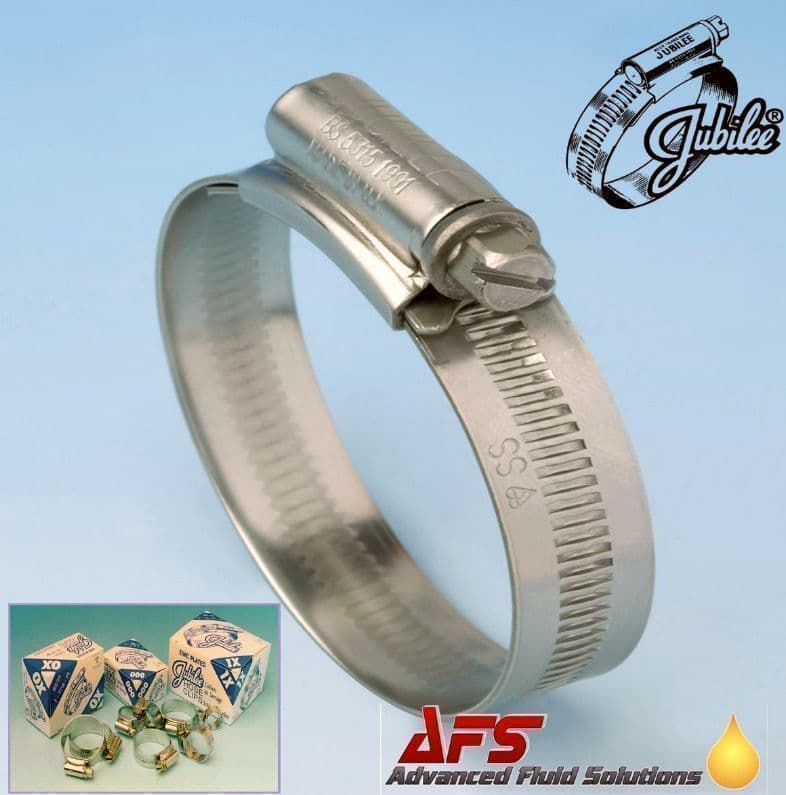

The original Jubilee® Clip, the product that started it all!
For the vast majority of applications this sturdy worm drive hose clip is more than suitable.
Available in stainless steel clamp in both 304 (18/8) or 316 (18/10) grades of stainless steel as special order.
This product also has a band that is continuously threaded enabling extra flexibility when adjusting the clip to the correct size. The smooth inside profile of the band and rolled edges give protection for all types of hoses including soft hoses made from rubber or silicone.
All our original Jubilee® Clips are independently tested by the British Standards Institute (BSi) and carry the British Standard Kitemark™, which is universally regarded as the most stringent standard there is for a hose clip. Both grades of stainless steel clips are also accredited by Lloyds Register for marine use.
Other Sizes We Stock
| AFS P No | Old Size No | Adjustment | Band Width mm | Recommended Tightening (N.m) | Max Pressure | ||
| mm | inches | PSI | BAR | ||||
| SS-JUB-012 | OOO | 9.5- 12 | 0.374 – 0.472 | 9.9 | 3.4 | 203 | 14 |
| SS-JUB-016 | MOO | 11- 16 | 0.433 – 0.630 | 9.9 | 3.4 | 203 | 14 |
| SS-JUB-020 | OO | 13- 20 | 0.512 – 0.787 | 9.9 | 3.4 | 203 | 14 |
| SS-JUB-022 | O | 16- 22 | 0.630 – 0.866 | 13 | 4.2 | 203 | 14 |
| SS-JUB-025 | OX | 18- 25 | 0.709 – 0.984 | 13 | 4.2 | 203 | 14 |
| SS-JUB-030 | 1A | 22- 30 | 0.866 – 1.181 | 13 | 5.1 | 203 | 14 |
| SS-JUB-035 | 1 | 25- 35 | 0.984 – 1.378 | 13 | 5.1 | 102 | 7 |
| SS-JUB-040 | 1X | 30- 40 | 1.181 – 1.575 | 13 | 5.1 | 102 | 7 |
| SS-JUB-045 | 1M | 32- 45 | 1.260 – 1.772 | 13 | 5.1 | 102 | 7 |
| SS-JUB-050 | 2A | 35- 50 | 1.378 – 1.969 | 13 | 5.9 | 102 | 7 |
| SS-JUB-055 | 2 | 40- 55 | 1.575 – 2.165 | 13 | 5.9 | 102 | 7 |
| SS-JUB-060 | 2X | 45- 60 | 1.772 – 2.362 | 13 | 5.9 | 102 | 7 |
| SS-JUB-070 | 3 | 55- 70 | 2.165 – 2.756 | 13 | 6.7 | 102 | 7 |
| SS-JUB-080 | 3X | 60- 80 | 2.362 – 3.150 | 13 | 6.7 | 44 | 3 |
| SS-JUB-090 | 4 | 70- 90 | 2.756 – 3.543 | 13 | 6.7 | 44 | 3 |
| SS-JUB-100 | 4X | 85-100 | 3.346 – 3.937 | 13 | 6.7 | 44 | 3 |
| SS-JUB-120 | 5 | 90-120 | 3.543 – 4.724 | 13 | 6.7 | 44 | 3 |
| SS-JUB-140 | 6 | 110-140 | 4.331 – 5.512 | 13 | 6.7 | 44 | 3 |
| SS-JUB-150 | 6X | 120-150 | 4.724 – 5.906 | 13 | 5.9 | 18 | 1 |
| SS-JUB-165 | 7 | 135-165 | 5.315 – 6.496 | 13 | 5.9 | 18 | 1 |
| SS-JUB-190 | 7.5 | 158-190 | 6.220 – 7.480 | 13 | 5.9 | 18 | 1 |
| SS-JUB-216 | 8.5 | 184-216 | 7.244 – 8.504 | 13 | 5.9 | 18 | 1 |
| SS-JUB-242 | 9.5 | 210-242 | 8.268 – 9.528 | 13 | 5.9 | 18 | 1 |
| SS-JUB-267 | 10.5 | 235-267 | 9.252 – 10.512 | 13 | 5.9 | 18 | 1 |
| SS-JUB-292 | 11.5 | 260-292 | 10.236 - 11.496 | 13 | 5.9 | 18 | 1 |
| SS-JUB-318 | 12.5 | 286-318 | 11.260 - 12.520 | 13 | 5.9 | 18 | 1 |
-
Product Code:SS-JUB-267
-
Weight:0.093kg
