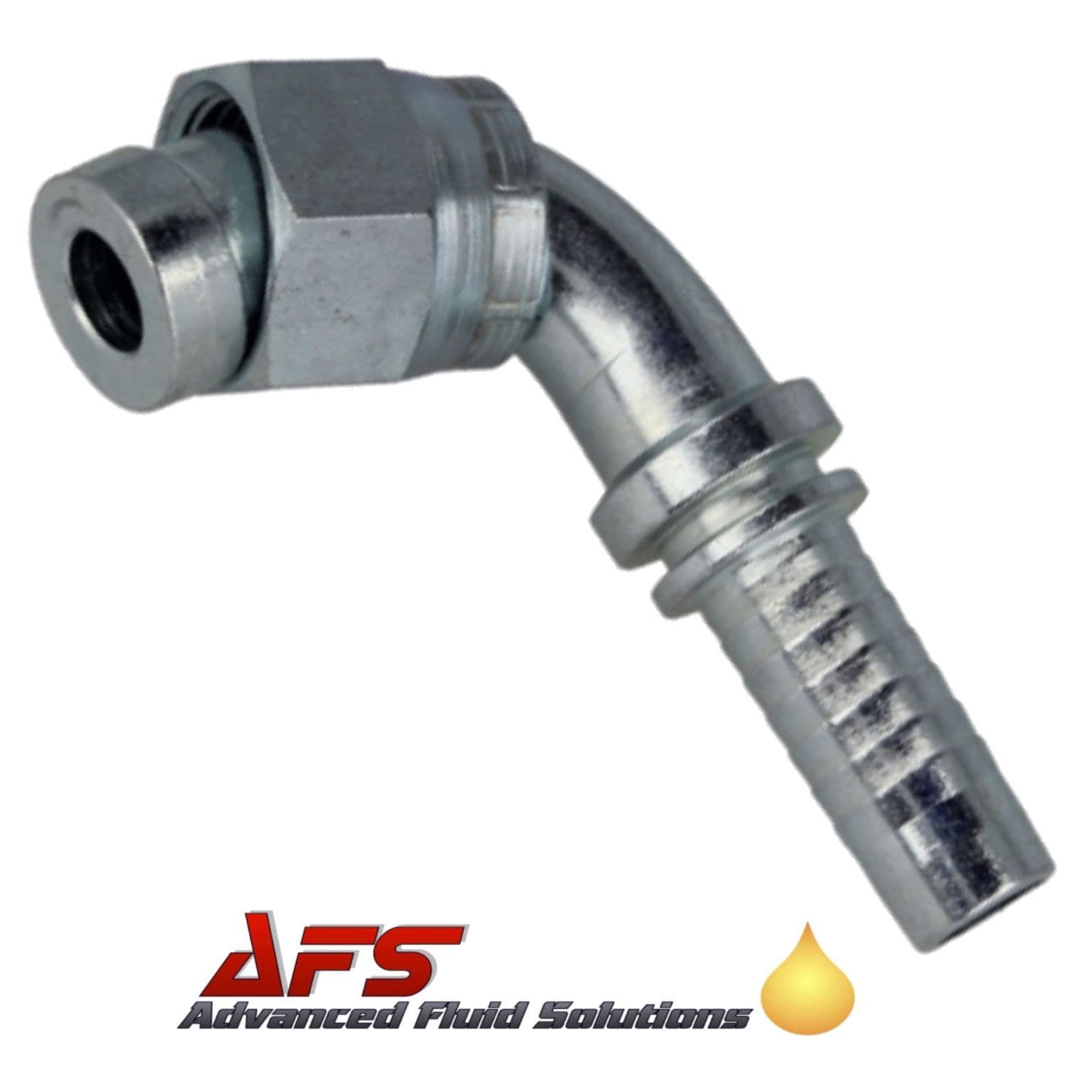

PICTURE IS FOR ILLUSTRATION ONLY
This item is priced each
ORFS 90 Degree Elbow x Hosetail Insert
90 Degree ORFS Steel Fitting
Hydraulic Hose Insert
Other Size's We Stock

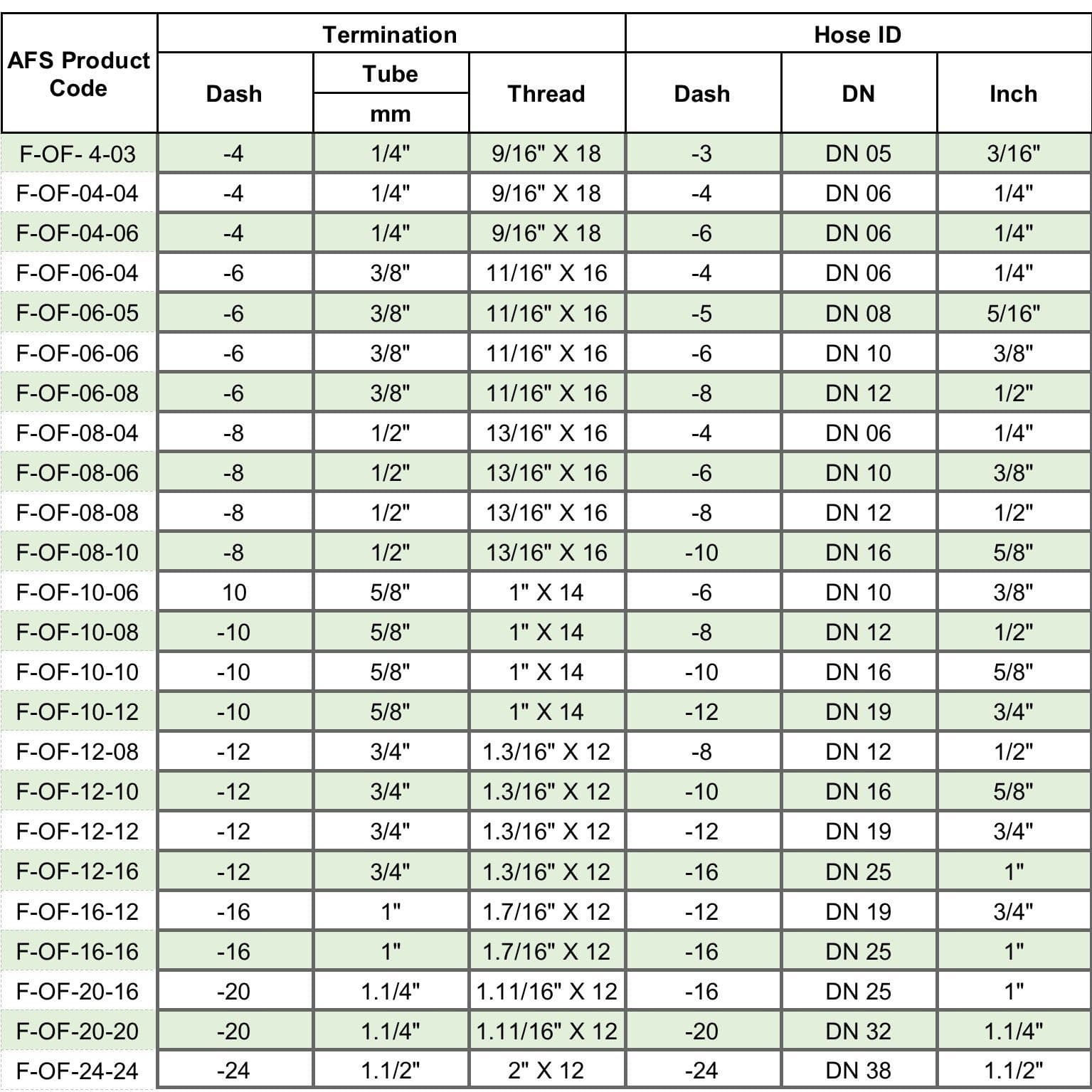

Please See Photo For Other Options
|

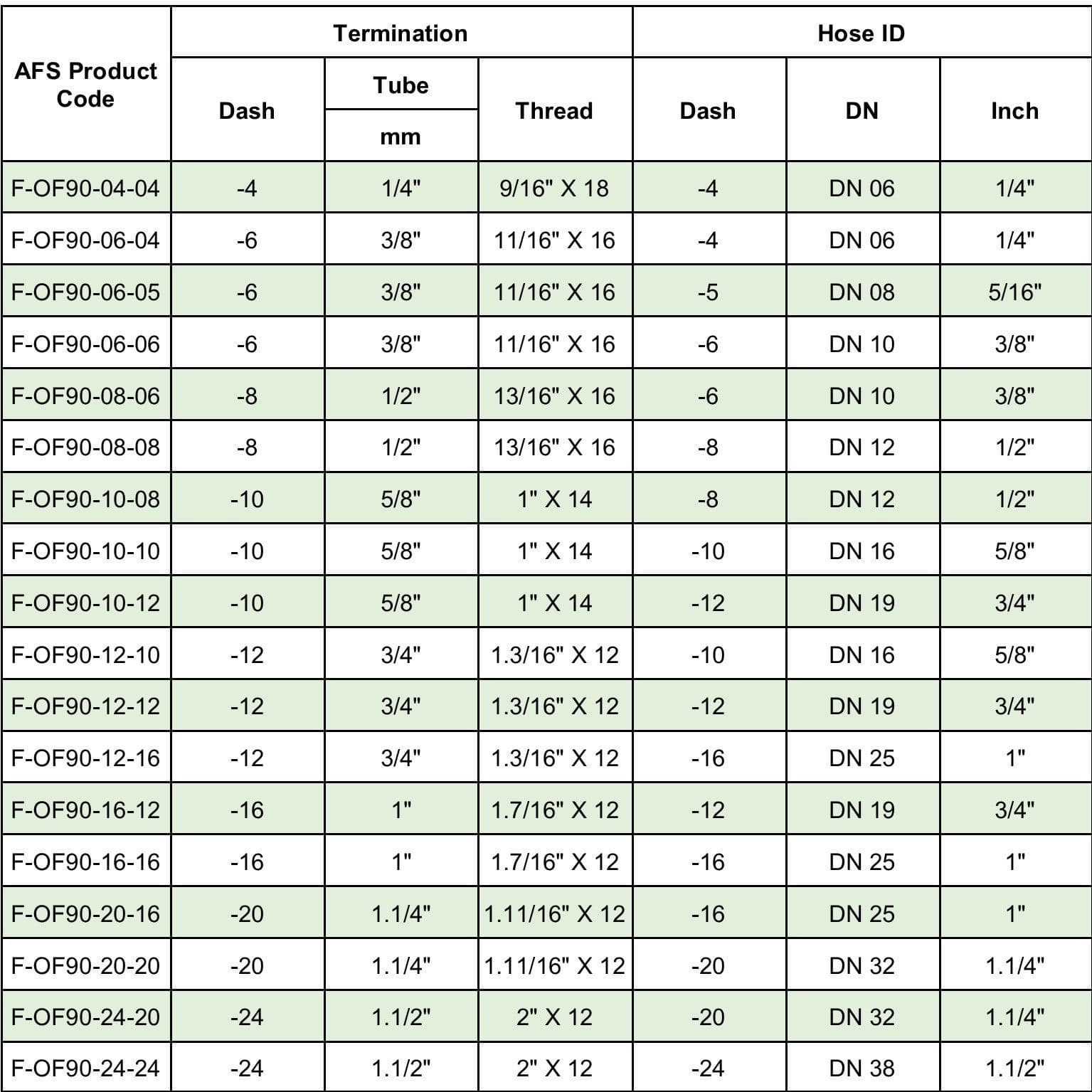

AFS Product Code |
Termination |
Hose ID |
||
|
Dash |
Tube |
Thread |
Dash |
|
|
mm |
||||
|
F-OF90-04-04 |
-4 |
1/4" |
9/16" X 18 |
-4 |
|
F-OF90-06-04 |
-6 |
3/8" |
11/16" X 16 |
-4 |
|
F-OF90-06-05 |
-6 |
3/8" |
11/16" X 16 |
-5 |
|
F-OF90-06-06 |
-6 |
3/8" |
11/16" X 16 |
-6 |
|
F-OF90-08-06 |
-8 |
1/2" |
13/16" X 16 |
-6 |
|
F-OF90-08-08 |
-8 |
1/2" |
13/16" X 16 |
-8 |
|
F-OF90-10-08 |
-10 |
5/8" |
1" X 14 |
-8 |
|
F-OF90-10-10 |
-10 |
5/8" |
1" X 14 |
-10 |
|
F-OF90-10-12 |
-10 |
5/8" |
1" X 14 |
-12 |
|
F-OF90-12-10 |
-12 |
3/4" |
1.3/16" X 12 |
-10 |
|
F-OF90-12-12 |
-12 |
3/4" |
1.3/16" X 12 |
-12 |
|
F-OF90-12-16 |
-12 |
3/4" |
1.3/16" X 12 |
-16 |
|
F-OF90-16-12 |
-16 |
1" |
1.7/16" X 12 |
-12 |
|
F-OF90-16-16 |
-16 |
1" |
1.7/16" X 12 |
-16 |
|
F-OF90-20-16 |
-20 |
1.1/4" |
1.11/16" X 12 |
-16 |
|
F-OF90-20-20 |
-20 |
1.1/4" |
1.11/16" X 12 |
-20 |
|
F-OF90-24-20 |
-24 |
1.1/2" |
2" X 12 |
-20 |
|
F-OF90-24-24 |
-24 |
1.1/2" |
2" X 12 |
-24 |
-
Product Code:F-OF90-10-08
-
Weight:0.17kg
