PICTURE IS FOR ILLUSTRATION ONLY
Price is for One

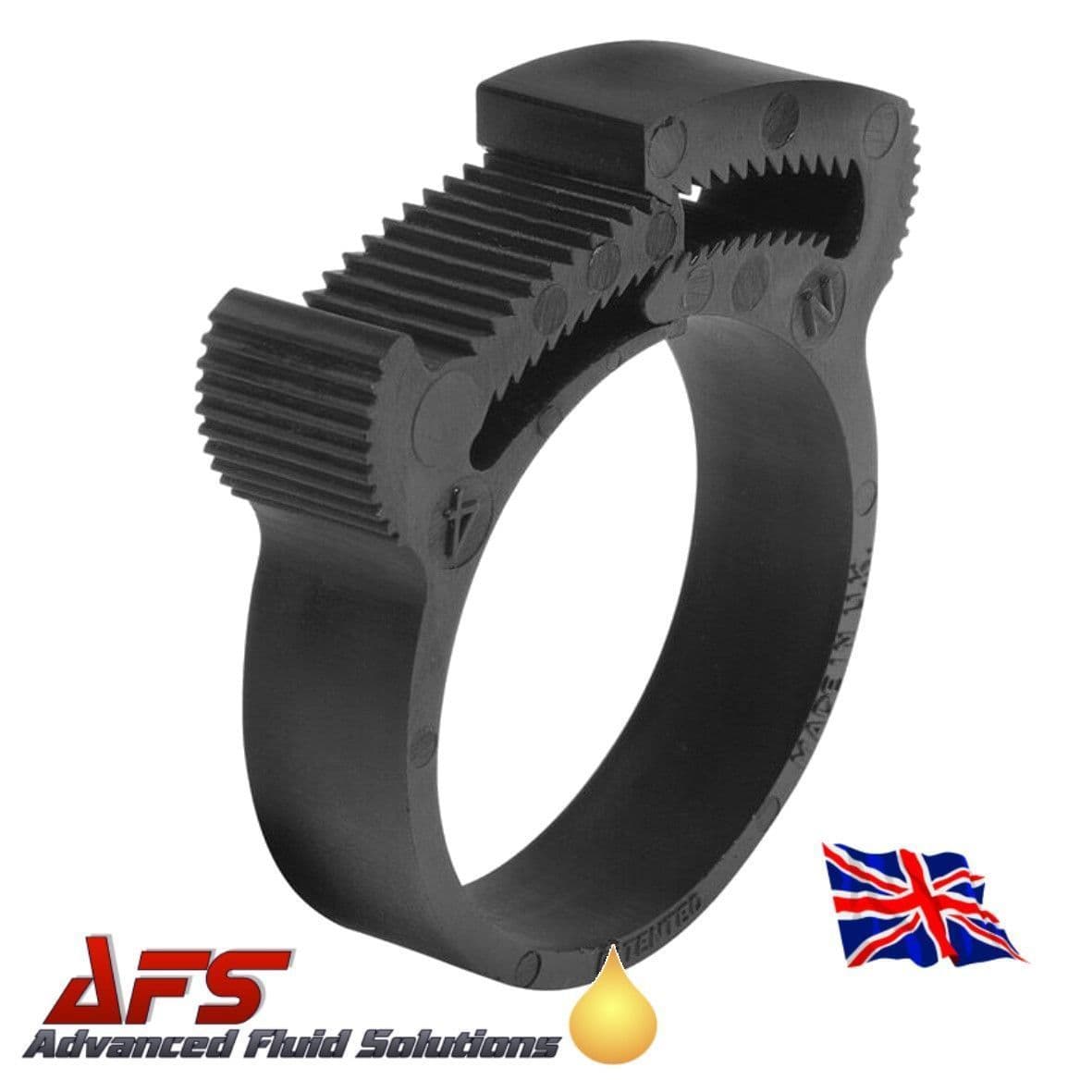

Herbie Clip® Plastic (Nylon) Hose Clamp Double Grip
Manufactured by HCL, the Herbie Clip® is the original double grip plastic hose clamp.
It is a quick and easy to install nylon hose clamp with exceptional strength arising from its unique double row of interlocking toothed jaws.
The double row of teeth offers over twice the clamping force achieved by similar products with only a single row of teeth.
Applications
Agricultural - Automotive - Hydro Massage - Irrigation - Pharmaceutical
Vending - White Goods - General Industry and many more
HERBIE CLIP OTHER FEATURES
Herbie Clips offer a number of additional features along with the double row of interlocking teeth.
These include being manufactured from a choice of materials to suit the clamping environment.
Nylon is the standard material because it is has high temperature rating and high strength but Polypropylene can also be chosen for more acidic environments.
In addition if the volume requirement is large enough the Herbie Clip can be made to a colour of your choice.
Materials
Standard - Heat/UV Stabilised ROHS compliant Nylon 6.6.
On Request - Polypropylene subject to Qty
Application Size Chart
AFS Part No | Clamping Diameter Range mm | Band Width mm | Band Thickness mm | Head Height mm |
HC-A | 5.6 6.5 | 4.2 | 1.4 | 8.3 |
HC-AA | 6.5 7.9 | 4.5 | 1.6 | 9.9 |
HC-B | 7.9 9.2 | 4.6 | 9.3 | |
HC-BB | 9.2 10.3 | 4.5 | 1.7 | 10.9 |
HC-C | 10.2 11.8 | 5.8 | 12.2 | |
HC-CC | 11.5 13.4 | 6.4 | 1.8 | 12.8 |
HC-D | 12.0 13.8 | 6.1 | 1.7 | 12.9 |
HC-E | 13.1 15.1 | 7.2 | 2 | 13.6 |
HC-F | 15.0 17.1 | 7.1 | 12.9 | |
HC-G | 16.9 19.1 | 7.3 | 2.1 | 12.5 |
HC-H | 18.1 20.6 | 7.1 | 12.7 | |
HC-J | 20.3 23.0 | 6.4 | 14.2 | |
HC-K | 23.1 26.1 | 7.3 | 2.2 | 13.7 |
HC-L | 24.5 27.6 | 7.1 | 2.1 | 12.5 |
HC-M | 26.5 29.5 | 7.4 | 2.2 | 13.4 |
HC-N | 28.8 32.2 | 9 | 2 | 13.4 |
HC-P | 32.0 34.8 | 9.1 | 2.2 | 13.8 |
HC-Q | 34.3 37.9 | 8.9 | 2.1 | 13.5 |
HC-R | 38.5 42.4 | 9.5 | 2.2 | 13.7 |
HC-S | 41.8 45.2 | 9.3 | 13.6 | |
HC-T | 44.6 48.0 | 9.1 | 2.1 | 13.2 |
HC-U | 47.4 51.1 | 9.1 | 14.6 | |
HC-V | 48.5 53.8 | 9 | 14.4 | |
HC-W | 53.0 56.5 | 9 | 15 | |
HC-X | 55.0 60.5 | 9.4 | 2.3 | 15.5 |
HC-59 | 59.0 64.7 | 9.3 | 2.7 | 17 |
HC-64 | 63.0 67.4 | 9.4 | 2.6 | 15.6 |
HC-66 | 65.8 71.7 | 9.2 | 1.95 | 15.7 |
HC-70 | 70.0 75.4 | 9.1 | 2.6 | 15.5 |
HC-75 | 74.7 80.5 | 9.1 | 16.5 | |
HC-80 | 79.8 85.0 | 9 | 2.9 | 17.7 |
HC-85 | 85.1 90.6 | 8.9 | 2.6 | 17.2 |
HC-91 | 91.0 96.0 | 9.5 | 16.7 | |
HC-96 | 97.7 102.1 | 8.5 | 17.4 | |
HC-105 | 105.3 111.8 | 8.9 | 16.2 | |
HC-109 | 108.0 114.3 | 9 | 17.4 | |
HC-115 | 115.0 121.0 | 9.5 | 17.4 | |
HC-163 | 163.0 169.0 | 9.5 | 2.5 | 16.0 |
-
Product Code:HC-Z-105
-
Weight:0.013kg
