Information

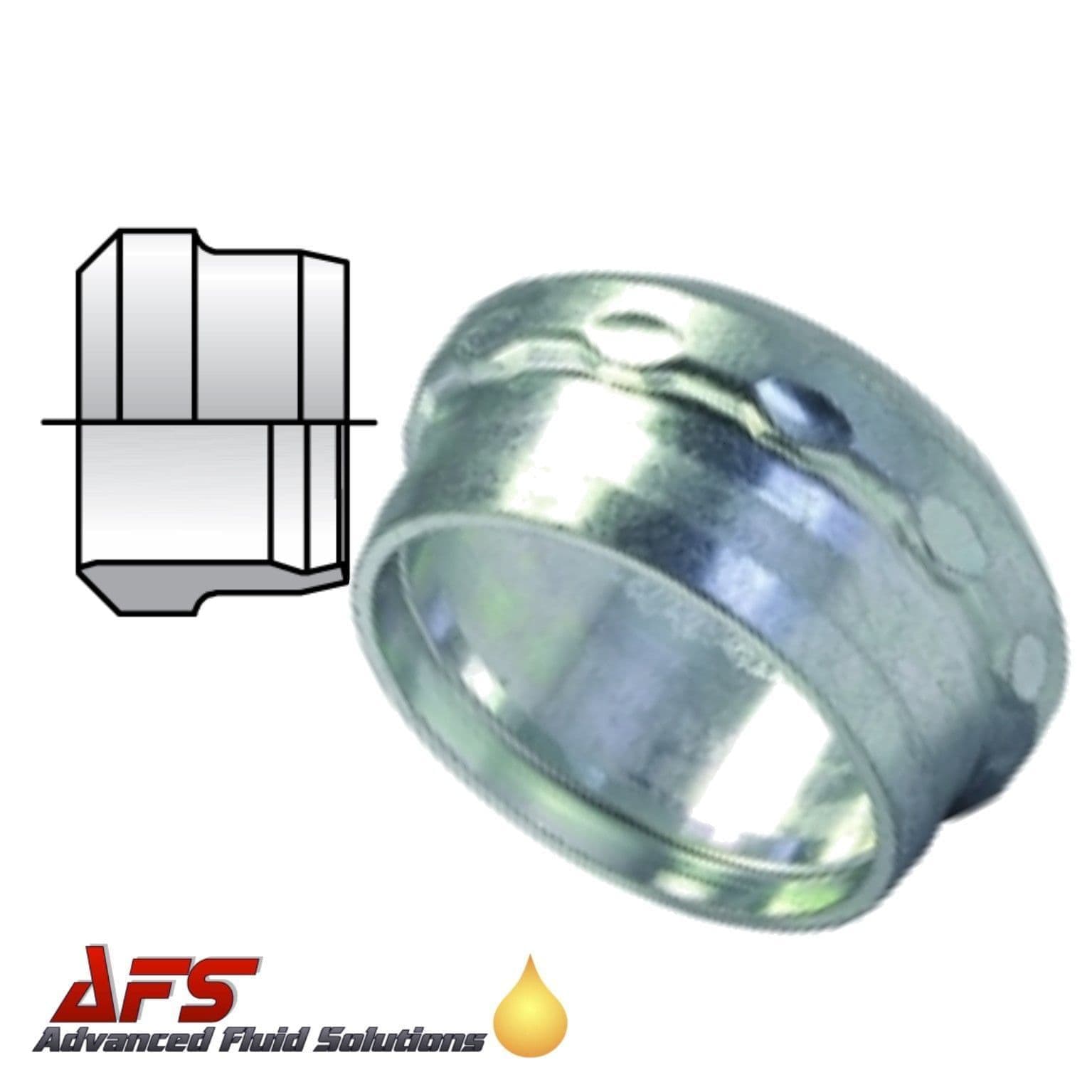

PICTURE IS FOR ILLUSTRATION ONLY
Others sizes we Stock
Please note
Extra Light Series Cutting Rings are only Compatible with Extra Light Fittings
where as The Light & Heavy series are interchangeable
Pressure Ratings
Extra Light Series Cutting Rings are only Compatible with Extra Light Fittings
where as The Light & Heavy series are interchangeable
Extra Light Series | ||
Product Code | Compression Fitting Tube to Tube | To Suit Tube O.D |
R-04LL | 4LL Compression Olive | 4mm |
R-06LL | 6LLCompression Olive | 6mm |
R-08LL | 8LL Compression Olive | 8mm |
R-10LL | 10LL Compression Olive |
10mm
|
Light Series | ||
Product Code | Compression Cutting Ring | To Suit Tube O.D |
R-06L/S | 6L Compression Olive | 6mm |
R-08L/S | 8L Compression Olive | 8mm |
R-10L/S | 10L Compression Olive | 10mm |
R-12L/S | 12L Compression Olive | 12mm |
R-15L | 15L Compression Olive | 15mm |
R-18L | 18L Compression Olive | 18mm |
R-22L | 22L Compression Olive | 22mm |
R-28L | 28L Compression Olive | 28mm |
R-35L | 35L Compression Olive | 35mm |
R-42L | 42L Compression Olive | 42mm |
Heavy Series | ||
Product Code | Compression Cutting Ring | To Suit Tube O.D |
R-06L/S | 6S Compression Olive | 6mm |
R-08L/S | 8S Compression Olive | 8mm |
R-10L/S | 10S Compression Olive | 10mm |
R-12L/S | 12S Compression Olive | 12mm |
R-14S | 14S Compression Olive | 14mm |
R-16S | 16S Compression Olive | 16mm |
R-20S | 20S Compression Olive | 20mm |
R-25S | 25S Compression Olive | 25mm |
R-30S | 30S Compression Olive | 30mm |
R-38S | 38S Compression Olive | 38mm |
Pressure Ratings
Series | O.D of Pipe | Nominal Pressure |
LL (Extra Light) | 4mm to 10mm | 100 BAR |
L (Light) | 6mm to 18mm | 315 BAR |
22mm to 42mm | 160 BAR | |
S (Heavy) | 6mm to 14mm | 630 BAR |
16mm to 30mm | 400 BAR | |
38mm | 315 BAR |
Specifications
-
Product Code:R-10LL
-
Weight:0.01kg
