Information
PICTURE IS FOR ILLUSTRATION ONLY
This item is priced each
ORFS Female Straight x Hosetail Insert
Straight ORFS Steel Fitting
Hydraulic Hose Insert
Other Size's We Stock

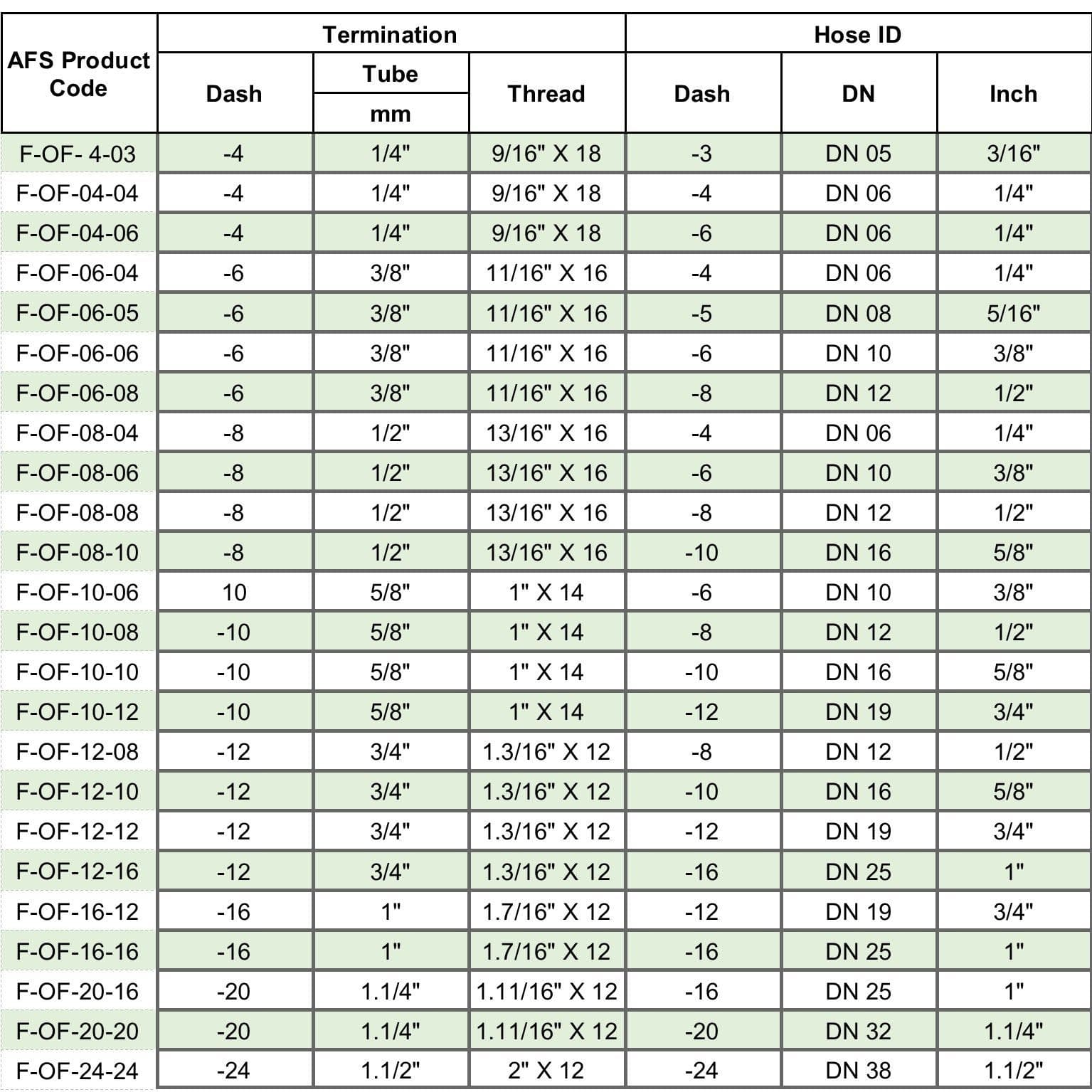

Please See Photo For Other Options
| AFS Product Code | Termination | Hose ID | ||||
| Dash | Tube | Thread | Dash | DN | Inch | |
| mm | ||||||
| F-OF-04-04 | -4 | 1/4" | 9/16" X 18 | -4 | DN 06 | 1/4" |
| F-OF-06-04 | -6 | 3/8" | 11/16" X 16 | -4 | DN 06 | 1/4" |
| F-OF-06-06 | -6 | 3/8" | 11/16" X 16 | -6 | DN 10 | 3/8" |
| F-OF-06-08 | -6 | 3/8" | 11/16" X 16 | -8 | DN 12 | 1/2" |
| F-OF-08-06 | -8 | 1/2" | 13/16" X 16 | -6 | DN 10 | 3/8" |
| F-OF-08-08 | -8 | 1/2" | 13/16" X 16 | -8 | DN 12 | 1/2" |
| F-OF-10-08 | -10 | 5/8" | 1" X 14 | -8 | DN 12 | 1/2" |
| F-OF-10-10 | -10 | 5/8" | 1" X 14 | -10 | DN 16 | 5/8" |
| F-OF-12-10 | -12 | 3/4" | 1.3/16" X 12 | -10 | DN 16 | 5/8" |
| F-OF-12-12 | -12 | 3/4" | 1.3/16" X 12 | -12 | DN 19 | 3/4" |
| F-OF-16-12 | -16 | 1" | 1.7/16" X 12 | -12 | DN 19 | 3/4" |
| F-OF-16-16 | -16 | 1" | 1.7/16" X 12 | -16 | DN 25 | 1" |
| F-OF-20-20 | -20 | 1.1/4" | 1.11/16" X 12 | -20 | DN 32 | 1.1/4" |
| F-OF-24-24 | -24 | 1.1/2" | 2" X 12 | -24 | DN 38 | 1.1/2" |
Specifications
-
Product Code:F-OF90-12-10
-
Weight:0.2kg
