PLEASE SELECT LENGTH REQUIRED FROM OPTION BOX ABOVE
PICTURE IS FOR ILLUSTRATION ONLY
Cut @ 1000mm, 500mm or 250mm +/- 5mm also 76mm couplings.
Unaffected by anti-freeze or anti-rust liquids
Highly resistant to hardening with very good compression characteristics
The material of the tubes have a very long life and reduce maintenance problems
| Part No | VENA SIL200 STRAIGHT SILICONE HOSE | I.D | I.D | O.D | W.P | B.P |
| 3 Ply Polyester Reinforced Silicone Hose | inch | mm | mm | (psi) | (psi) | |
| V200-006 | Sil Hose Straight 6mm X 1 Metre | 1/4" | 6 | 14.4 | 214 | 642 |
| V200-008 | Sil Hose Straight 8mm X 1 Metre | 5/16" | 8 | 16.4 | 172 | 516 |
| V200-010 | Sil Hose Straight 10mm X 1 Metre | 3/8" | 10 | 18.4 | 146 | 438 |
| V200-013 | Sil Hose Straight 13mm X 1 Metre | 1/2" | 13 | 21.4 | 120 | 360 |
| V200-016 | Sil Hose Straight 16mm X 1 Metre | 5/8" | 16 | 24.4 | 103 | 309 |
| V200-019 | Sil Hose Straight 19mm X 1 Metre | 3/4" | 19 | 27.4 | 90 | 270 |
| V200-022 | Sil Hose Straight 22mm X 1 Metre | 7/8" | 22 | 30.4 | 80 | 240 |
| V200-025 | Sil Hose Straight 25mm X 1 Metre | 1" | 25 | 33.4 | 72 | 216 |
| V200-028 | Sil Hose Straight 28mm X 1 Metre | 1 1/8" | 28 | 36.4 | 67 | 201 |
| V200-032 | Sil Hose Straight 32mm X 1 Metre | 1 1/4" | 32 | 40.4 | 59 | 177 |
| V200-035 | Sil Hose Straight 35mm X 1 Metre | 1 3/8" | 35 | 43.4 | 55 | 165 |
| V200-038 | Sil Hose Straight 38mm X 1 Metre | 1 1/2" | 38 | 46.4 | 52 | 156 |
| V200-042 | Sil Hose Straight 42mm X 1 Metre | 1 5/8" | 42 | 50.4 | 50 | 150 |
| V200-045 | Sil Hose Straight 45mm X 1 Metre | 1 3/4" | 45 | 53.4 | 45 | 135 |
| V200-048 | Sil Hose Straight 48mm X 1 Metre | 1 7/8" | 48 | 56.4 | 43 | 129 |
| V200-051 | Sil Hose Straight 51mm X 1 Metre | 2" | 51 | 59.4 | 40 | 120 |
| V200-054 | Sil Hose Straight 54mm X 1 Metre | 2 1/8" | 54 | 62.4 | 39 | 117 |
| V200-057 | Sil Hose Straight 57mm X 1 Metre | 2 1/4" | 57 | 65.4 | 37 | 111 |
| V200-060 | Sil Hose Straight 60mm X 1 Metre | 2 3/8" | 60 | 68.4 | 36 | 108 |
| V200-063 | Sil Hose Straight 63mm X 1 Metre | 2 1/2" | 63 | 71.4 | 34 | 102 |
| V200-070 | Sil Hose Straight 70mm X 1 Metre | 2 3/4" | 70 | 78.4 | 32 | 96 |
| V200-076 | Sil Hose Straight 76mm X 1 Metre | 3" | 76 | 84.4 | 29 | 87 |
| V200-080 | Sil Hose Straight 80mm X 1 Metre | 3 1/8" | 80 | 88.4 | 29 | 87 |
| V200-082 | Sil Hose Straight 82mm X 1 Metre | 3 1/4" | 82 | 90.4 | 28 | 84 |
| V200-090 | Sil Hose Straight 90mm X 1 Metre | 3 1/2" | 90 | 98.4 | 26 | 78 |
| V200-102 | Sil Hose Straight 102mm X 1 Metre | 4" | 102 | 110.4 | 23 | 69 |
Cutting: Ensure you use a new sharp steel blade for cutting our silicone hoses, to ensure a straight cut tighten a jubilee hose clip around the hose without deforming the hose and use the edge of the clip as a guide for the knife blade.
Fitting: The internal diameter of the hose should be equal to or slightly smaller than the pipe that you are fitting it to. Hoses must never be distorted when fitted, if the hose is stretched into position it is more likely to fail. Hoses when clamped in place should be clamped just behind the formed bead with at least 10mm of hose beyond the clip.

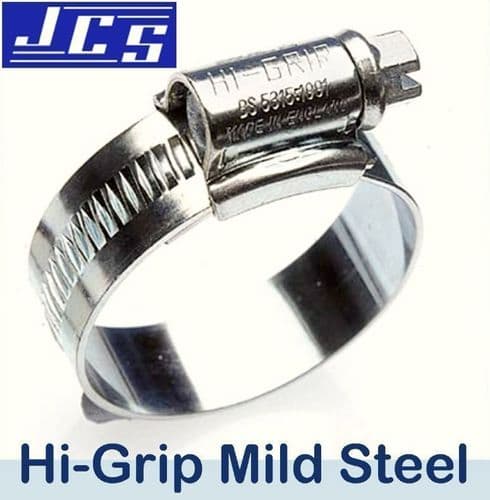

Clamping: It is important that a good quality hose clip is used to ensure that the hose is securely attached to the pipe work. Our range of JCS hose clips will ensure a tight fit without damaging the surface of our silicone hoses.
Cleaning: We recommend good old hot soapy water, oil based solutions such as WD40 and other silicone based products will discolour the hose and should not be used.
-
Product Code:B-V200-028X0.5
-
Weight:0.3kg
