Home / Industrial / PVC & PU Hoses - Fuel & Oil & Water - Food Grade - Chemical / Merlett Florida PVC Food Grade Flexible Suction & Delivery Hose / 30mm I.D (1.3/16 Inch) Merlett Florida Suction & Delivery Flexible PVC Hose

30mm I.D (1 .3/16 Inch) Merlett Florida Suction & Delivery PVC Hose Ideal for seed drill

30mm I.D (1.3/16 Inch) Merlett Florida Suction & Delivery Flexible PVC Hose

Stock Status: In Stock

CLICK PICTURE FOR MORE DETAILS & TO PURCHASE On some products we may offer discounts of up to 70% off, if applicable the Discount will be applied at Checkout automatically before you pay. The more you buy the bigger the discount.

1 - 23

£8.06

No Saving

£7.25

£0.81

25+

£4.84

£3.22

Information

Picture For Illustration only

Price is Per Metre (+/-10mm)

Max Coils of 25mtr

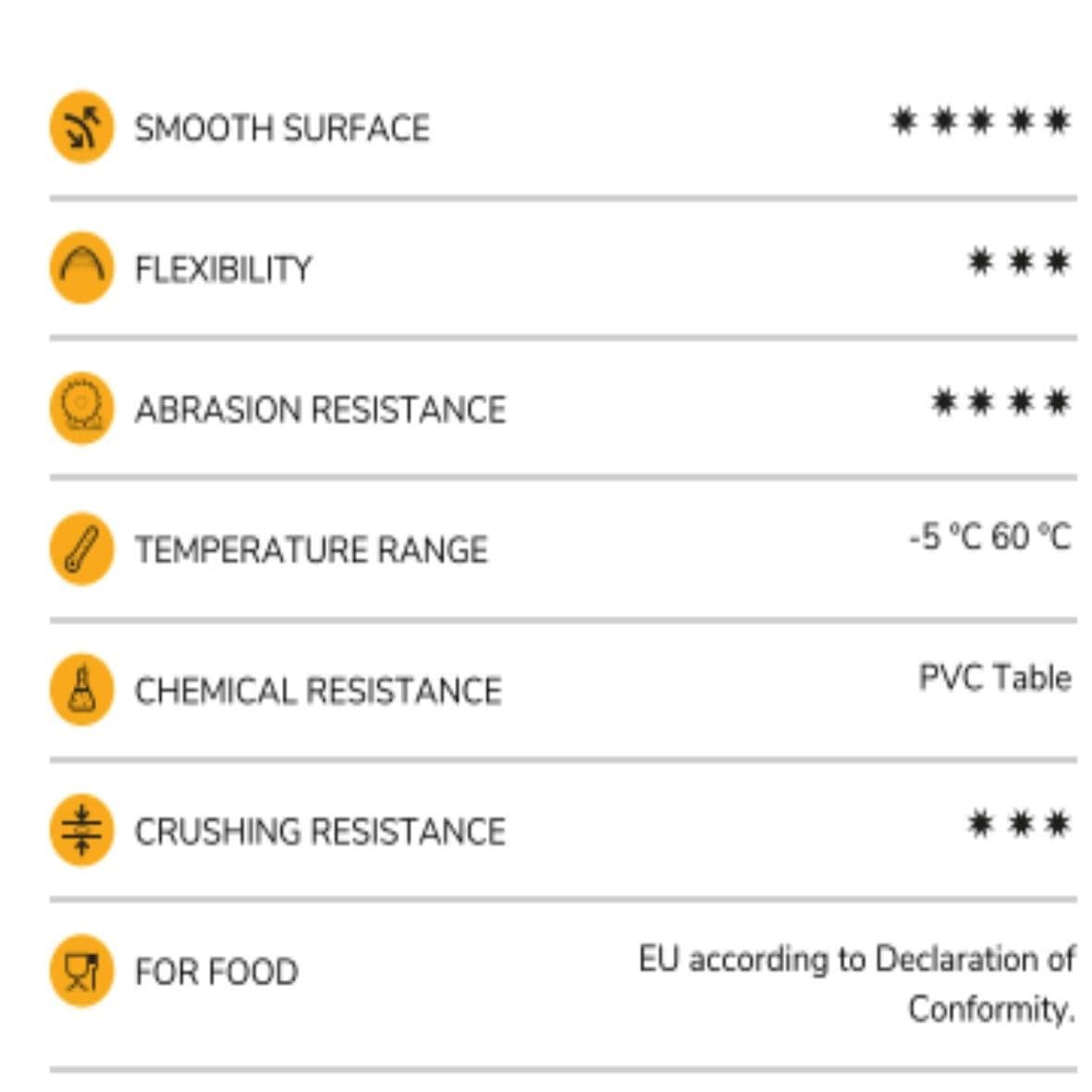

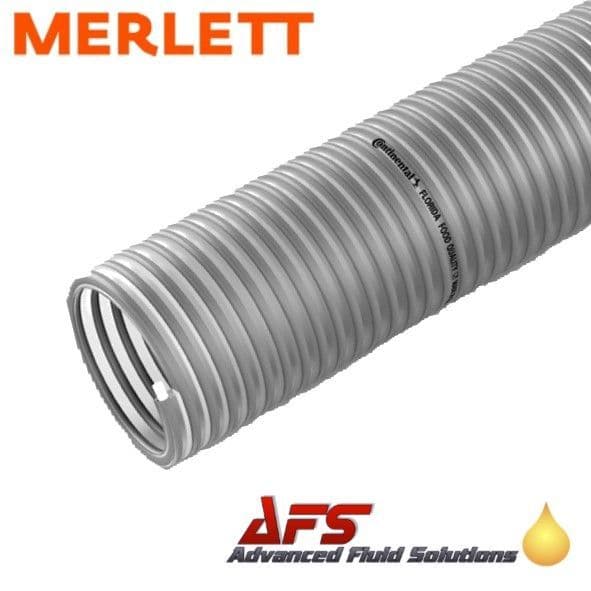

Food Grade PVC hose with PVC rigid spiral for delivery and suction of liquids.

Hose is also ideal for Seed Drills

Temperature range: -5°C to +60°C

Other Sizes We Stock:

AFS Part NO:	Ø Nominal I.D (mm)	Ø Nominal I.D (Inch)	O.D. (mm)	Working Pressure at 23 °C (Bar)	Vacuum 23 °C m/H2O	Bending Radius (mm)	Weight Meter g/m	Max Coil Length (mtr)
AFS Part NO:	Ø Nominal I.D (mm)	Ø Nominal I.D (Inch)	O.D. (mm)	Working Pressure at 23 °C (Bar)	Vacuum 23 °C m/H2O	Bending Radius (mm)	Weight Meter g/m	Max Coil Length (mtr)
MER-911021-025	25	1	29.7	6.5	6	140	250	25
MER-911021-030	30		35	6	6	175	330	25
MER-911021-032	32	1 1/4	37.2	6	6	180	350	25
MER-911021-035	35		40.4	6	6	195	400	25
MER-911021-038	38	1 1/2	43.6	6	6	210	430	25

Other Sizes Available To Order Please email quoting the part number

AFS Part NO:	Ø Nominal I.D (mm)	Ø Nominal I.D (Inch)	O.D. (mm)	Working Pressure at 23 °C (Bar)	Vacuum 23 °C m/H2O	Bending Radius (mm)	Weight Meter g/m	Max Coil Length (mtr)
AFS Part NO:	Ø Nominal I.D (mm)	Ø Nominal I.D (Inch)	O.D. (mm)	Working Pressure at 23 °C (Bar)	Vacuum 23 °C m/H2O	Bending Radius (mm)	Weight Meter g/m	Max Coil Length (mtr)
MER-911021-016	16		20.4	6.5	6	90	175	30
MER-911021-020	20		24.9	6.5	6	110	210	25
MER-911021-040	40		46	5.5	6	220	480	25
MER-911021-045	45	1 3/4	52	5.5	6	255	640	25
MER-911021-050	50	2	58.4	5.5	6	275	760	25
MER-911021-055	55		63.8	5.5	6	310	860	25
MER-911021-060	60		68.4	4	6	330	900	25
MER-911021-063	63	2 1/2	71.2	4	6	350	970	25
MER-911021-070	70		79	3	6	450	1125	25
MER-911021-075	75		84.4	3	6	500	1200	25
MER-911021-080	80		89.4	3	6	550	1450	25
MER-911021-090	90	3 1/2	101.8	3	6	630	1850	25
MER-911021-100	100		112.2	2	6	700	2200	25
MER-911021-110	110		122	2	6	770	2400	25
MER-911021-120	120		133.4	2	4	840	2800	25

Specifications

Product Code:

MER-911021-030

Weight:

0.34kg
