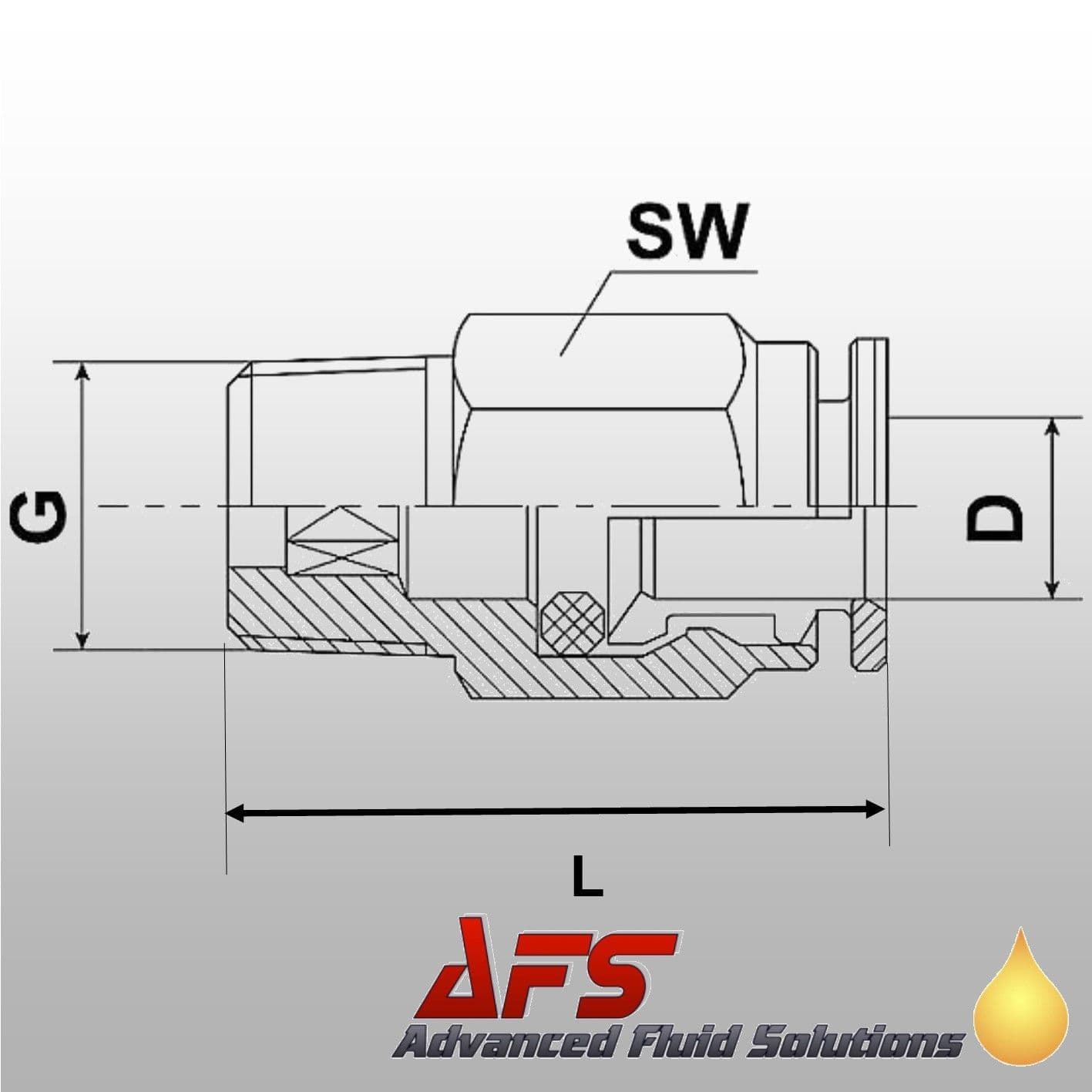

PICTURE IS FOR ILLUSTRATION ONLY
Hose types recommended: PA 6-6 and PA 12 DIN 73378
Hose tolerances: +/- 0.05 pursuant to CETOP-standard
Temperature range: -20° C up to + 70°C
Pressure range: max. 80 bars
The pressure range is considerably affected by the hoses and tubes used as well as by ambient temperature.
Other Option we can Offer
|HP-PMS-04-M6||6 x 1||4mm||10||18,5|
|HP-PMS-04-M8||8 x 1||4mm||10||23|
|HP-PMS-04-M10||10 x 1||4mm||10||20|
|HP-PMS-04-04/28UNF||1/4 - 28 UNF||4mm||11||20|
|HP-PMS-06-M6||6 x 1||6mm||12||21,5|
|HP-PMS-06-M8||8 x 1||6mm||12||25,5|
|HP-PMS-06-M10||10 x 1||6mm||12||25,5|
|HP-PMS-06-04/28UNF||1/4 - 28 UNF||6mm||12||23,5|
1. Cut plastic tube to length by means of hose clippers 90° and deburr.
2. Take care that the tube is not ovally deformed.
3. Insert tube into push-in fitting up to the stop (the plastic tube offered by us has got graduation marks to facilitate this operation visually)
By pressing the release collar and concurrent drawing of hose, the plastic tube can be dismounted again. After hose connection, it must be ensured that the hose does not undergo any tensile load and the minimum bending radius is respected.
Please note that our push-in fittings for centralised lubrication systems shall be installed only by skilled staff.
