THIS HOSE IS SOLD PER MTR
BUT IS CUT TO THE QTY YOU ORDER SUBJECT TO MAX COILS LENGTHS 25m
60° shore A hardness.
Temperature range: -40 to +200°C
This hose may be used in food/beverages, pharmaceutical applications, fishing, fish ponds, aquariums and many more
FDA, BFR approved
Water Council and Food and Drug Administration (FDA) approved materials for use specifically within hygiene-critical applications.

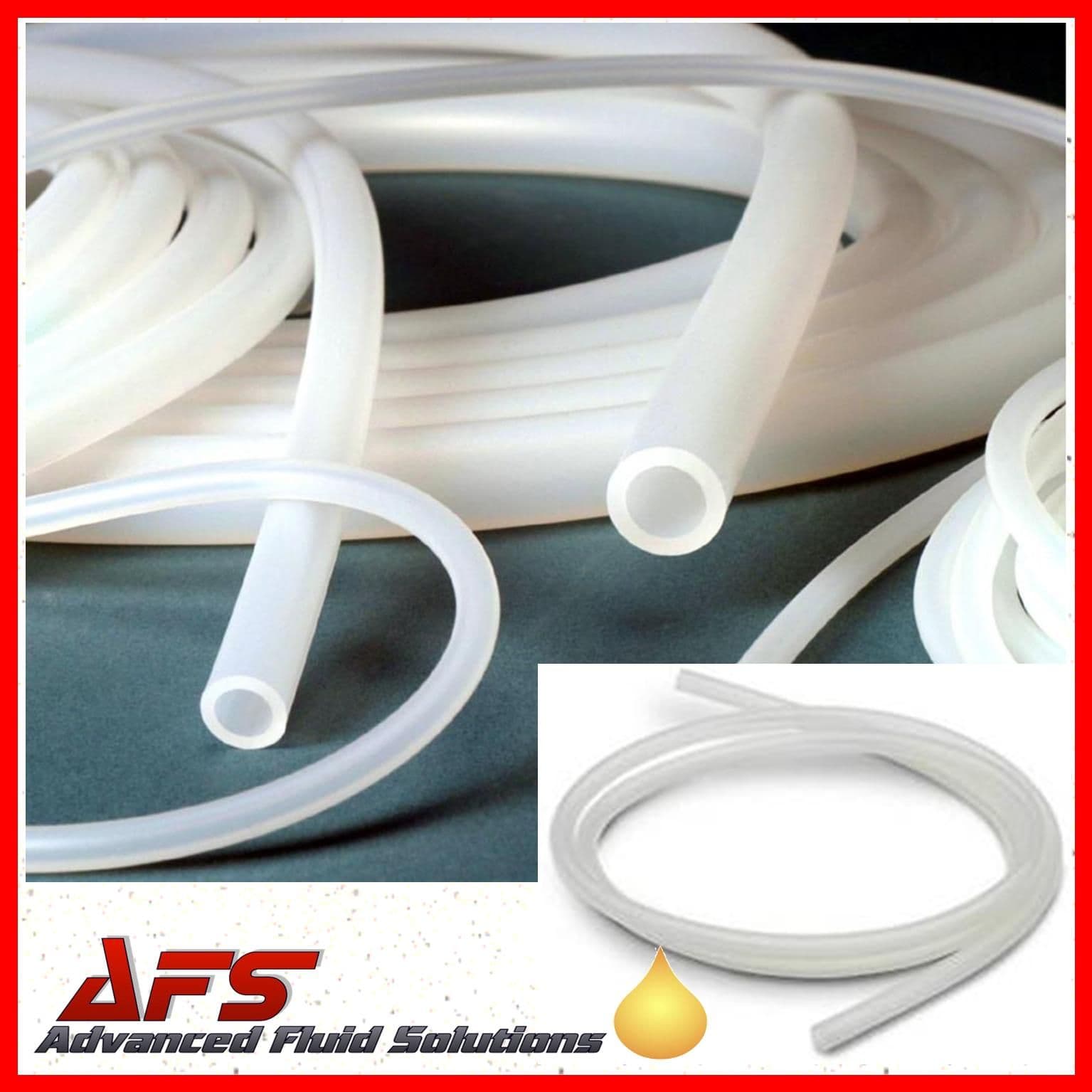

We stock a range of sizes in translucent platinum cured silicone from 0.5mm to 25mm bore shown below.
| ID (mm) | WALL (mm) | OD (mm) |
| 0.5 | 0.5 | 1.5 |
| 0.5 | 0.8 | 2.1 |
| 0.8 | 0.8 | 2.4 |
| 1 | 0.5 | 2 |
| 1 | 1 | 3 |
| 1.5 | 0.5 | 2.5 |
| 1.5 | 0.75 | 3 |
| 1.5 | 1 | 3.5 |
| 1.6 | 0.8 | 3.2 |
| 1.6 | 1.6 | 4.8 |
| 2 | 1 | 4 |
| 2 | 2 | 6 |
| 2.4 | 0.8 | 4 |
| 3 | 1 | 5 |
| 3 | 1.5 | 6 |
| 3 | 2 | 7 |
| 3.2 | 0.8 | 4.8 |
| 3.2 | 1 | 5.2 |
| 3.2 | 1.6 | 6.4 |
| 4 | 0.8 | 5.6 |
| 4 | 1 | 6 |
| 4 | 1.5 | 7 |
| 4 | 2 | 8 |
| ID (mm) | WALL (mm) | OD (mm) |
| 4 | 3 | 10 |
| 4.8 | 0.8 | 6.4 |
| 4.8 | 1.6 | 8 |
| 5 | 1 | 7 |
| 5 | 1.5 | 8 |
| 5 | 2 | 9 |
| 5 | 2.5 | 10 |
| 6 | 1 | 8 |
| 6 | 1.5 | 9 |
| 6 | 2 | 10 |
| 6 | 3 | 12 |
| 6.3 | 1.6 | 9.5 |
| 6.3 | 2.4 | 11.1 |
| 6.3 | 3.2 | 12.7 |
| 6.4 | 0.8 | 8 |
| 7 | 1.5 | 10 |
| 7 | 2 | 11 |
| 8 | 1 | 10 |
| 8 | 1.6 | 11.2 |
| 8 | 2 | 12 |
| 8 | 2.4 | 12.8 |
| 8 | 2.5 | 13 |
| 8 | 3 | 14 |
| 8 | 4 | 16 |
| ID (mm) | WALL (mm) | OD (mm) |
| 9 | 2 | 13 |
| 9 | 3 | 15 |
| 9.5 | 3.2 | 15.9 |
| 9.6 | 1.6 | 12.8 |
| 9.6 | 2.4 | 14.4 |
| 10 | 1 | 12 |
| 10 | 2 | 14 |
| 10 | 2.5 | 15 |
| 10 | 3 | 16 |
| 10 | 4 | 18 |
| 12 | 2 | 16 |
| 12.7 | 3.2 | 19.1 |
| 12.8 | 1.6 | 16 |
| 12.8 | 2.4 | 17.6 |
| 13 | 3 | 19 |
| 15 | 3 | 21 |
| 16 | 2.4 | 20.8 |
| 16 | 3 | 22 |
| 19 | 3.2 | 25.4 |
| 20 | 3 | 26 |
| 22 | 3 | 28 |
| 25 | 3 | 31 |
-
Product Code:CST-06.00/9.00
-
Weight:0.1kg
Customer reviews
ID is on the large size so a loose fit on 6mm hose tails
Dave Wigman | dorset | March 2023
Advanced Fluid Solutions Ltd 23/02/2024
This would depend on your hose tails and how you measure the fitting. a 6mm barbed tail should measure 6.4 - 6.8mm O.D on the tip of barb and not dead 6mm like a 6mm pin punch or drill. If less than the 6mm you would have needed small I.D hose to suit we have many sizes
