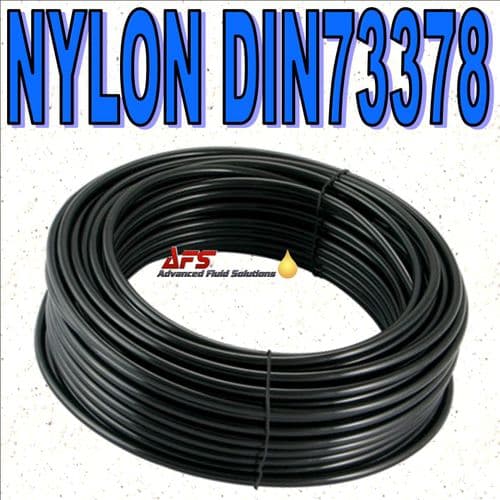

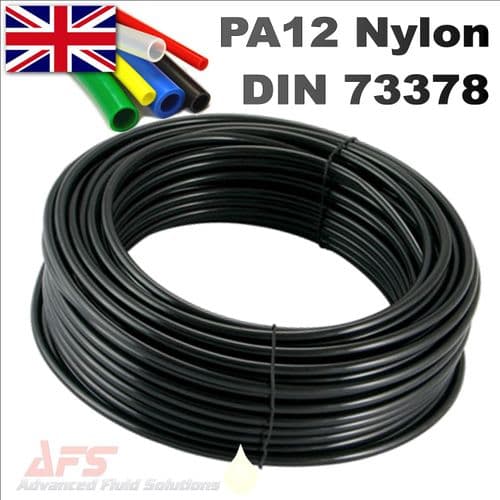

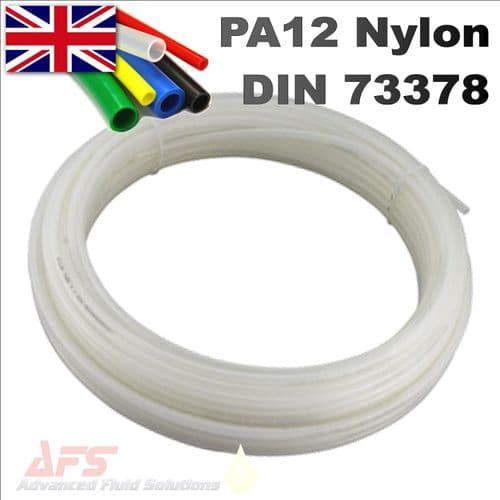

Push-in fittings as well as our straight plug-in male fittings are suited for use on plastic nylon tubes PA 6 and PA 12 as well as steel pipes or pipe sockets. The high-pressure plug-in connectors can also be used with our CT hose lines 840 bar with pipe socket and claw slot. Our push-in male fittings can withstand an operating and/or working pressure of up to 80 bars and can be detached without any tool and reused. The major advantages of this technology are considerable time savings upon assembly and the push-in fittings can be used several times with an optimal result.
The excellent pressure strength enables their use as fitting with plug-in connector during the installation of centralised lubrication systems. Our connecting elements are compatible with the designs of many renowned manufacturers of centralised lubrication systems. AFS HP push-in fittings complement with their technical features the range of ferrule fittings offered and well-proven over years. They are available as push-in connectors and are used by many manufacturers of centralised lubrication systems upon installation of such systems. A foresaid push-in fittings allow
• a machine manufacturer
• an automobile builder
• a superstructure maker
• an agricultural machine maker
• a wind-power plant maker
to mount lubrication systems as works installation in initial equipment with cost-effective mounting expenditure. Thanks to the technology of a push-in fitting, the assembly time for connection to the high-pressure plastic tube or, when using the high-pressure hose line with hose socket with slot, is considerably lesser as compared to the ferrule fitting. It is only necessary to cut the piping to adequate length and to insert the push-in fitting. The plastic tube or the pipe socket with slot is then instantly locked and clamped pressure-resistant.
This technology has been used for compressed-air and pneumatic systems for many years. Now, our push-in fitting offers these advantages also in the field of high-pressure equipment for centralised lubrication systems. Push-in fittings can be used for high-pressure lubrication systems, grease lubrication systems or pluggable for plastic tubes or pipe sockets with slot and are ideally suited for lubrication from progressive feeder up to bearing point.
