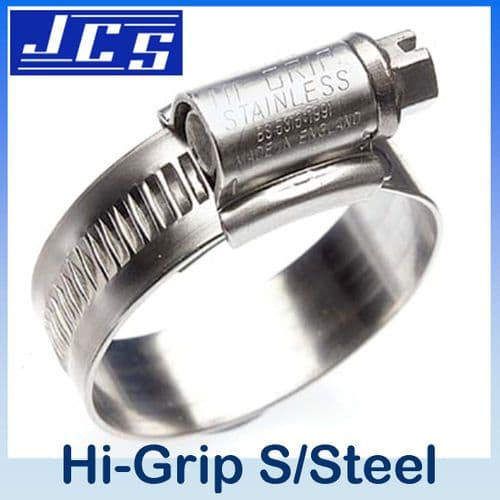

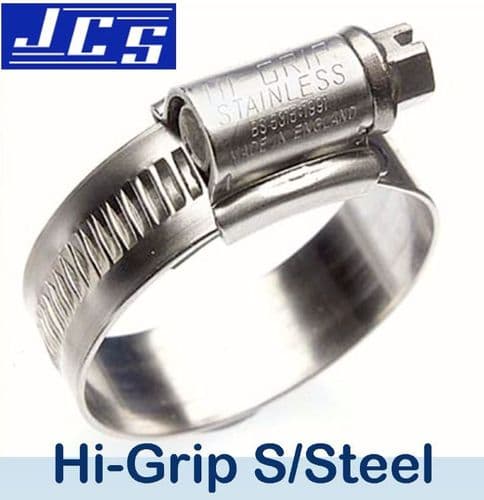

  HI-GRIP ®    WORM DRIVE HOSE CLIPS TO BS5315


HI-GRIP STAINLESS hose clips are made entirely from 18/8 marine quality stainless steel and therefore are ideal for salt water and many other highly corrosive environments.

They have Lloyd's Register Type Approval for marine, offshore and industrial use. HI-GRIP STAINLESS hose clips have fast become the industry standard for marine applications throughout the world due to their high quality and performance.

Size A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
Recommended
Setting Torque
Nm | lb-in
12-20 7 14 10 13 10 0.7 3.0 | 26
22-45 8 15 12 16 13 0.9 5.0 | 45
50 & larger 13 20 12 16 13 0.9 6.0 | 54
Material Specification

HI-GRIP STAINLESS All parts BS/AISI 304 - EN 1.4301


HI-GRIP BAND EDGES

All HI-GRIP STAINLESS hose clips have fully rounded edges to give the best possible protection to the hose

HI-GRIP Band Edges Typical Hose Clip with
turned up edges
